Sunshine Coast Emergency Communications

PDFs To Print

An up-to-date copy of this page
A few copies of the radiogram from PERCS.
BCARCC repeater frequencies for Lower Mainland & Coast and Vancouver Island / and/or this amalgamated spreadsheet list.

Non-Amateur radio operators can use FRS and Meshcore to communicate locally.

Initial Actions in the Event of an Emergency

In the event of a significant emergency affecting communications across the Sunshine Coast, all amateur radio operators should:

Monitor the VE7RXZ repeater on VHF 147.220 MHz +0.6 T100.0 for traffic or requests for assistance from VE7SCE.
If VE7RXZ is not operational, monitor 147.220 with 100Hz tone (without any offset) (Net controllers monitor 147.820 for operators that are operating in duplex and let them know to go to simplex on 147.220 T100.0)
If able, also monitor VE7SCK 442.650 +5.0 T100.0.
If VE7SCK is not operational, monitor 442.650 with 100Hz tone (without any offset) (Net controllers monitor 447.650 for operators that are operating in duplex and let them know to go to simplex on 442.650 T100.0)
If able, also monitor simplex VHF: 1: 146.430 MHz, 2: 147.540 MHz, 3: 146.490 MHz, 146.565 MHz for traffic or request for assistance from VE7SCE.
If able, monitor EMBC HF frequencies for information (see below).

It is unlikely that VE7SCE will use HF for local communications on the Sunshine Coast, however relays may be required for another station on frequency and operators should monitor EMBC or BCPSN HF frequencies if able to do so.

Declaration of State of Emergency by the SCRD EOC

The following will be broadcast from VE7SCE on VE7RXZ 147.220 MHz +0.6 T100.0 and/or on simplex frequencies:

Taking Control of the Net

ALL STATIONS, ALL STATIONS, ALL STATIONS:
This is VE7SCE – Sunshine Coast Regional District Emergency Operations Centre, Sechelt, British Columbia.†
A [LOCAL / REGIONAL / PROVINCIAL] State of Emergency has been declared, I say again: / a [LOCAL / REGIONAL / PROVINCIAL] State of Emergency has been declared.
This frequency is now in use by the SCRD Emergency Operations Centre - VE7SCE - all stations not having emergency traffic are requested to remain clear.
If you have traffic concerning safety of life or property in the Sunshine Coast Regional District, and you are unable to contact 911, relay your traffic to this station.
Otherwise, if it is safe to do so, all station operators within the SCRD region are requested to remain monitoring this frequency as your assistance may be requested.
This is VE7SCE, SCRD EOC Net Control monitoring…

Taking Check ins

ALL STATIONS, ALL STATIONS, AL STATIONS:
This is VE7SCE – Sunshine Coast Regional District Emergency Operations Centre, Sechelt, British Columbia.†
Stations within the SCRD region are requested to check in now with your callsign, name and location.
Once checked in you must inform SCRD Net Control if you intend to leave the frequency.
This is VE7SCE standing by …

† As we share a frequency with W7AVM on Whidbey Island in Washington State, the full SCRD name and location will be used initially to avoid any confusion should our traffic be heard south of the border.

HF Emergency Frequencies

Sources: http://www.percs.bc.ca/ and https://www.rac.ca/ : find exact pages to link to.

Description	Frequency [MHz]	Mode
EMBC 80m Primary Night	3.735	LSB Phone
EMBC 80m Secondary Night	3.745	LSB Phone
EMBC 40m Primary Day	7.060	LSB Phone
EMBC 40m Secondary Day	7.070	LSB Phone
EMBC DATA	3.613.50	USB DATA
EMBC DATA	7.089.50	USB DATA
VE7SWF South West EMBC PREOC	14.135	USB Phone
VE7SWF South West EMBC PREOC	21.120	USB Phone
VE7KAZ Kamloops EMBC PREOC RMS	5.371.50	USB DATA‡
VE7RBH Smithers, BC Winlink RMS	3.623.50 / 7.063	USB DATA‡
WASHST 01 Washington State	3.985	LSB Phone
WASHST 02 Washington State	3.994	LSB Phone
WASHST 03 Washington State	7.245	LSB Phone
BCPSN: BC Public Service Net	3.729	LSB Phone
ALASKA Emergency Net	14.292	USB Phone
EMCOM A	3.675	LSB Phone
EMCOM B	7.135	LSB Phone
EMCOM C	14.135	USB Phone
EMCOM D	18.135	USB Phone
EMCOM E	21.235	USB Phone
EMCOM F	28.235	USB Phone
OREGON	3.980	LSB Phone

EMBC: Emergency Management BC Frequencies
WASHST: Washington State Emergency Frequencies
EMCOM: IARU / RAC Canadian Emergency Frequencies
OREGON: Oregon State Emergency Net Frequency
‡Winlink RMS Station

National HF Emergency Communications Frequencies

Source: RAC

The following frequencies and modes have been pre-determined for suggested use of the Amateur Radio Emergency Service during a declared emergency, or a disaster declared or otherwise, occurring anywhere in Canada. These frequencies have been registered with the International Amateur Radio Union (IARU) for its listings of Canadian national emergency frequencies in IARU Region 2.

These are suggested frequencies and should not be construed as meaning that other HF frequencies may not be considered for Emcomm operations.

No Amateur Radio operator or group has exclusive ownership of any particular frequency on any band and, while common sense and courtesy logically would dictate that other Radio Amateurs should keep clear of frequencies being used for emergency or disaster operations, the affected ARES Net Control Station (NCS) must be prepared to move up or down from the pre-determined frequency, as required, in order to conduct operations. Entering into an on-air argument must be avoided.

Band	Single Sideband / Frequency	Single Sideband / Tactical	CW / Frequency	CW / Tactical	Digital / Frequency	Digital / Tactical
80 M	3.675 MHz LSB	Alfa	3.535 MHz	Golf	3.596 MHz	Mike
40 M	7.135 MHz LSB	Bravo	7.035 MHz	Hotel	7.096 MHz	November
20 M	14.135 MHz USB	Charlie	14.035 MHz	India	14.096 MHz	Oscar
17 M	18.135 MHz USB	Delta	18.075 MHz	Juliet	18.096 MHz	Papa
15 M	21.235 MHz USB	Echo	21.035 MHz	Kilo	21.096 MHz	Quebec
10 M	28.235 MHz USB	Foxtrot	28.035 MHz	Lima	28.096 MHz	Romeo

Other Frequencies

Repeater Book: The phone app is also highly recommended.
Canadian Spectrum Management System Data (Formerly known as TAFL)
- Search the TAFL
- TAFL Map (118 MHz - 525 MHz in Sechelt. Click New in green box on top left to change)
RadioReference

Regular Emergency Nets

Net	Day	Time	Frequency
Alaska Emergency Net	Mon ‒ Fri	09:30 LT	14.292 MHz
Canadian Red Cross Net	Sundays	11:00 PST / noon PDT	14.125 MHz
BC Public Service Net	Daily	17:30 PST / 18:30 PDT	3.729 MHz
VE7PEP Simplex α	Wednesdays	18:30 ‒ 19:10 LT	147.570 MHz
PERCS HF β	Wednesdays	18:45 LT	3.735 MHz followed by 7.275 MHz
VE7PEP ITS δ	Wednesdays	19:15 ‒ 19:40 LT	Island Trunk System
VE7SWF VHF	3rd Wednesday	19:30 LT	VE7RPT repeater (146.940 -)
BC and Yukon NTS Net	Daily	19:30 LT	3.716 MHz

α The purpose of the net is to make contact with EOCs in the Capital Regional District.

β The net is held every Wednesday at 18:45 on 3.735 MHz LSB. Then at 19:00 we move to 7.275 MHz LSB. Net control on 1st, 3rd and 5th Wednesday is VE7SWF (South West PREOC) and on 2nd and 4th Wednesday is VE7PEP (Vancouver Island PREOC).

δ The purpose of the net is to make contact with EOCs and interested amateurs in the Vancouver Island Region. Each of the Regional Districts are called in sequence.

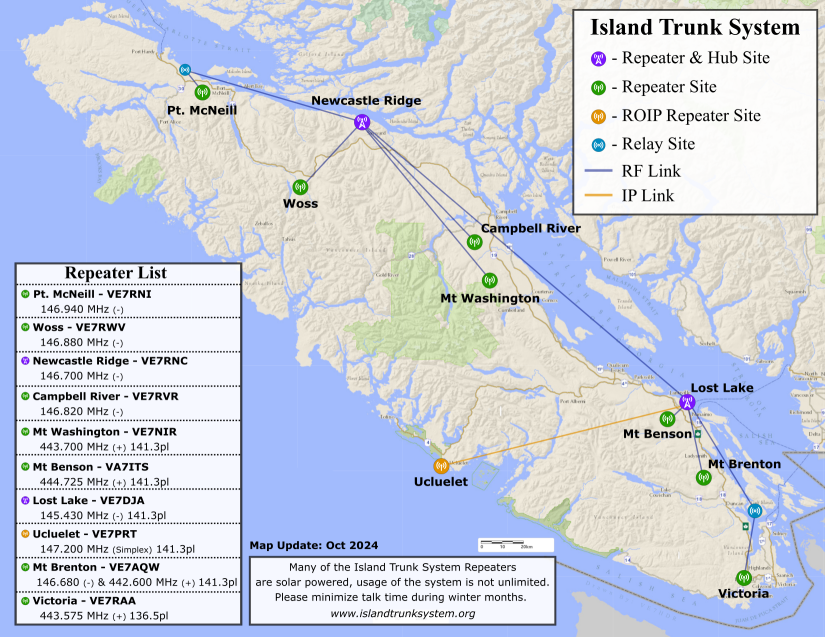

Island Trunk System

Open diagram

City	Callsign	Frequency	Offset	Tone
Newcastle Ridge	VE7RNC	146.700	−	141.3
→ Port McNeill	VE7RNI	146.940	−
→ Woss Lake	VE7RWV	146.880	−
→ Campbell River	VE7RVR	146.820	−
→ Mt. Washington	VE7NIR	443.700	+	141.3
Lost Lake	VA7DJA	145.430	−	141.3
→ Ucluelet	VE7PRT	147.200		141.3
→ Mt. Benson	VA7ITS	444.725	+	141.3
→ Mt. Brenton	VE7AQW	146.680	−	141.3
→ Mt. Brenton	VE7AQW	442.600	+	141.3
→ Victoria	VE7RAA	443.575	+	136.5

The trunk has two main interconnected nodes: Sayward, and Lost Lake. The other repeaters are connected to either one of these two nodes.1)

Source: islandtrunksystem.org

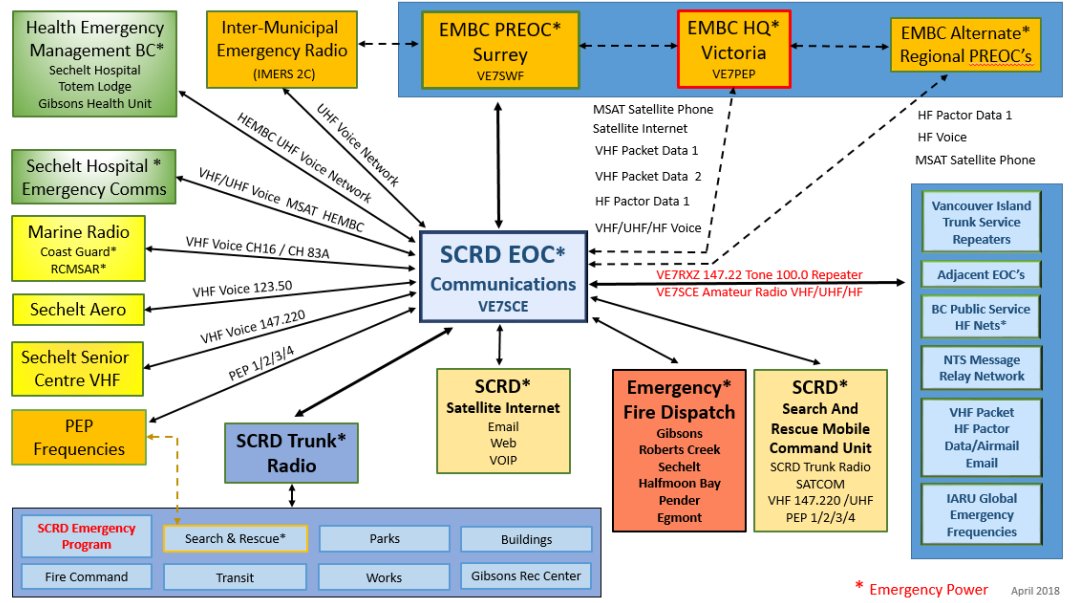

SCEP Details

Source: SCRD ECT/SCRD EOC Communications Diagram/

VE7SCE Radio Stations

Item	Details
Data/Comms Position 1	Kenwood TM-D710GA VHF/UHF
Data/Comms Position 2	Kenwood TM-D710GA VHF/UHF
Comms/Pactor Position 1	Kenwood TM-D710GA VHF/UHF / Kenwood TS480HX 200W HF / SCS DR7400 Pactor / LDG 200 PRO II Auto Antenna Tuner
Comms/Data Position 2	Kenwood TM-D710GA VHF/UHF
SCRD Trunk Radio	Installed on Buses/SCRD Service & Parks Vehicles. / Repeater on Mt. Benson & VE7RXZ as SCA 147.220 MHz is programmed into all SCRD Trunk radio / SCEP 6 is the dedicated Emergency Program channel

Inter-Municipal Emergency Radio System via Bowen Island 2C repeater
Health Emergency Management BC - Emergency Radio to VGH and Sechelt Hospital
Emergency Fire Dispatch system for Sunshine Coast Fire Departments
Marine and Aero Radio

Contact Information

Sources: EMBC, PERCS SWR, PERCS VIR

SCEP:
- Callsign: VE7SCE
- 1975 Field Road, Sechelt (entrance on Solar Road)
- https://www.scrd.ca/Emergency-Program, https://www.scrd.ca/Emergency-Radio
- Tel: 604-885-6887
- email: [email protected]
- Winlink: [email protected]
EMBC South West Region (our region)
- Callsign: VE7SWF
- 14292 Green Timbers Way, Surrey, B.C. V3T 0J4
- Tel: 604-586-4390
- Fax: 604-586-4334
- email: [email protected]
- Winlink: [email protected]
EMBC Vancouver Island Region (for reference only)
- Callsign: VE7PEP
- Block A - Suite 200, 2261 Keating Cross Road, Saanichton B.C., V8M 2A5
- Tel: 250-952-5571 or 250-952-5572 (old?: 250-952-5848)
- Fax: 250-952-4304
- email: [email protected]
- Winlink: [email protected]

Emergency Preparedness

Sources: PreparedBC, getprepared.gc.ca

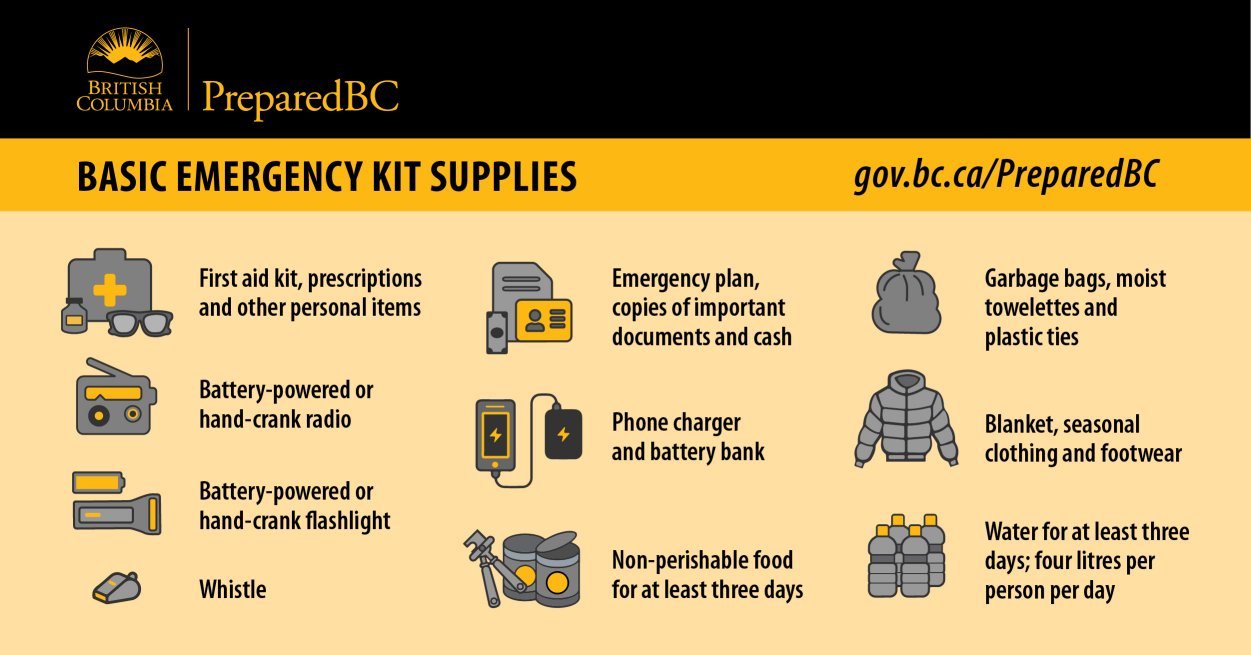

Basic emergency kit

Water: At least two litres of water per person per day; include small bottles that can be carried easily in case of an evacuation order
Food that won’t spoil, such as canned food, energy bars and dried foods (replace food and water once a year)
Manual can-opener
Crank or battery-powered flashlight (and extra batteries). Replace batteries once a year.
Crank, battery-powered radio (and extra batteries) or Weatheradio
First aid kit
Extra keys to your car and house
Some cash in smaller bills, such as $10 bills and change for payphones
A copy of your emergency plan and contact information
If applicable, other items such as prescription medication, infant formula, equipment for people with disabilities, or food, water and medication for your pets or service animal (personalize according to your needs)

Recommended additional items

Two additional litres of water per person per day for cooking and cleaning
Candles and matches or lighter (place candles in deep, sturdy containers and do not burn unattended)
Change of clothing and footwear for each household member
Sleeping bag or warm blanket for each household member
Toiletries
Hand sanitizer
Utensils
Garbage bags
Toilet paper
Water purifying tablets
Basic tools (hammer, pliers, wrench, screwdrivers, work gloves, dust mask, pocket knife)
A whistle (in case you need to attract attention)
Duct tape (to tape up windows, doors, air vents, etc.)

Note 1

Flowchart of ITS created using draw.io (aka diagrams.net) with:

Lost Lake VA7DJA 145.430− 141.3->UHF link->Mt Brenton VE7AQW 146.680− 141.3 442.600+ 141.3 Lost Lake VA7DJA 145.430− 141.3->UHF link->Mt Benson VA7ITS 444.725+ 141.3 Lost Lake VA7DJA 145.430− 141.3->IP link->Ucluelet VE7PRT 147.200 141.3 Lost Lake VA7DJA 145.430− 141.3->RF link->Saltspring Relay Saltspring Relay->RF link->Victoria VE7RAA 443.575+ 136.5 Newcastle Ridge VE7RNC 146.700− 141.3->220 link->Lost Lake VA7DJA 145.430− 141.3 Newcastle Ridge VE7RNC 146.700− 141.3->UHF link->Mt Washington VE7NIR 443.700+ 141.3 Newcastle Ridge VE7RNC 146.700− 141.3->220 link->Campbell River VE7RVR 146.820− 141.3 Newcastle Ridge VE7RNC 146.700− 141.3->220 link->Woss Lake VE7RWV 146.880− Newcastle Ridge VE7RNC 146.700− 141.3->220 LINK->Port McNeill Airport Relay Port McNeill Airport Relay->UHF LINK->Port McNeill VE7RNI 146.940−
